Treatment solutions for infectious risk waste Linkedin

STERIPLUS™ 20

Integrated infectious waste pre-shredding and steam sterilization system

Tesalys STERIPLUS ™ systems are the ideal solution to safely inactivate your infectious waste on site.
Their integrated TESASHRED ™ shredding system not only allows a consequent reduction in the volume and weight of waste, but also guarantees their treatment at heart.

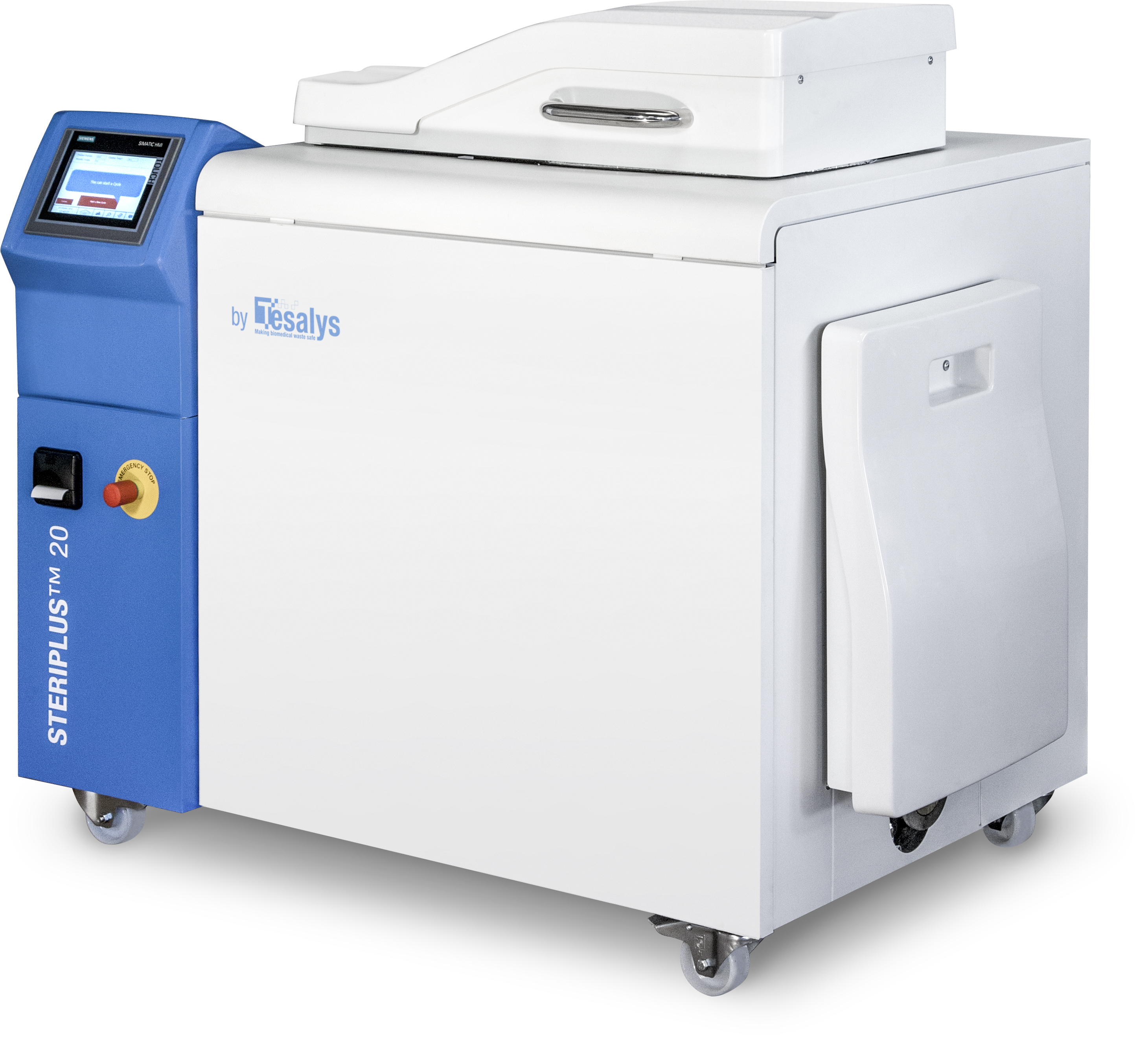

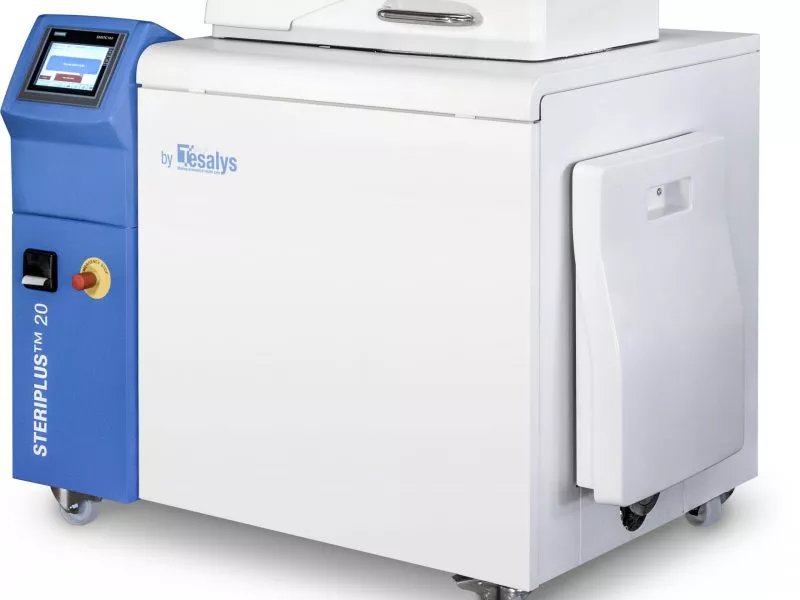

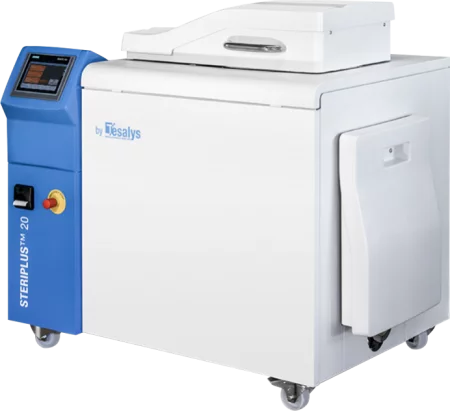

STERIPLUS™ 20
On-site infectious risk waste treatment solution

Compact

The smallest machine in our range STERIPLUS™, the STERIPLUS™ 20 offers an efficient solution for on-site waste treatment.

Suitable for small and medium spaces

It can be easily installed in a small room. It is perfectly adapted to small and medium structures, such as laboratories or medical centres.

Economic

The STERIPLUS™ 20 is very energy-efficient and does not require much water.

LOADING CHAMBER CAPACITY20 L
LOADING CHAMBER USEFUL DIMENSIONS (W x D x H)320 x 247 x 273 mm
LOADING CAPACITY (containers)1 X TESABOX  20
TOTAL CYCLE TIME (NF X30-503-1 standard) (1)30 to 35 min
TOTAL CYCLE TIME in working conditions (2)30 to 50 min.
LOADING CAPACITY (KG/CYCLE)1,6 to 2,4 kg/cycle - Based on an average waste density of 0,08 to 0,12kg/L for Healthcare Waste
2,4 to 4 kg/cycle - Based on an average waste density of 0,12 to 0,2kg/L for Lab/Humid/Liquid Waste
TREATMENT CAPACITY (KG/H) (3)2 to 3 kg/h - Based on an average waste density of 0,08 to 0,12kg/L for Healthcare Waste
3 to 5 kg/h - Based on an average waste density of 0,12 to 0,2kg/L for Lab/Humid/Liquid Waste
MAX QUANTITY OF LIQUID RECOMMENDED PER CYCLE (4)6 L
EXTERNAL DIMENSIONS (w x d x h)1300 x 895 x 1210 mm
NET WEIGHT530 kg
LOADING CHAMBERStainless steel with PTFE coating
TREATMENT CHAMBERAISI 304L stainless steel
STEAM GENERATORAISI 304L stainless steel (chamber) & Highly corrosion-resistant Hastelloy®
WATER SOFTENEROptional (external)
WATER BOOSTER PUMP AND AIR COMPRESSORBuilt-in
WASTE SHREDDER Structure: AISI 304L stainless steel & Blades: High-strength steel
PIPINGStainless steel/PTFE flexible hosing
CHASSISPainted steel
BODYWORKComposite material / Painted steel
CYCLE TRACEABILITY - THROUGH PRINTOUTBuilt-in
USB PORTBuilt-in









































(1) 30-35min for test loads as per NF X30-503-1 standard.
(2) Cycle times may vary based on the type of materials, waste density, humidity, quantity of liquids, etc. For loads with high liquid content, cycle time can be longer. Up to 50min depending on the waste density.
(3) Based on an average cycle time of 45min. (40 min. of cycle + 5 min. unloading/loading time).
(4) Quantity of liquids allowed might vary depending on application (urine bags, blood bags, food testing bags, ...).

All the data given in this catalogue are non-binding and given as a guide only. Treatment capacities, cycle times and consumptions are given as mere examples and may vary depending on the type of waste, installation conditions, operator’s availability and skills.
Consumption is calculated on the basis of a standard cycle of the machine.
For consumption with cooling of the drain and / or the Virus + kit, please consult us.

WATER
RequirementsSoftened water (4-8°TH)
Consumption5 liters / cycle
ELECTRICITY
Requirements380-400 V III N, 50Hz/60Hz
Consumption1 kW/h / cycle
DRAINø 32 mm internal (heat-resistant)
STEAM/COMPRESSED AIRProduced by the integrated steam generator and air compressor; no external connection required.

STERIPLUSTM, TESASHREDTM and TESAXTRACTTM are Tesalys brands names.
