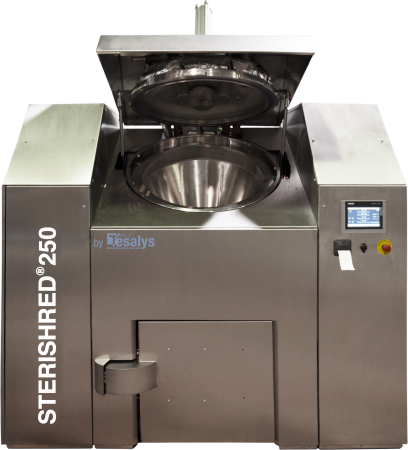

STERISHRED® 250

¡LA SOLUCIÓN IN SITU PARA CAMBIAR DESECHOS MÉDICOS INFECCIOSOS EN DESECHOS DOMÉSTICOS EN POCOS MINUTOS!

STERISHRED® 250 es una solución in situ moderna y compacta para el tratamiento de residuos sanitarios infecciosos mediante un proceso de combustión no térmica (esterilización por vapor) a 135 ° C. ¡Tritura y esteriliza simultáneamente los desechos biopeligrosos, incluidos los objetos afilados, en minutos!

Ideal para tratar los residuos embolsados

Su método de carga facilita el tratamiento de los residuos médicos en bolsa.

Fácil de uso

Con una interfaz ergonómica, esta solución ofrece una alternativa sencilla al tratamiento de residuos infecciosos.

Rapidez y eficiencia del ciclo

STERISHRED® puede tratar de 15 a 25KG de residuos infecciosos, en 40 a 50 min.



DRAIN

Inner 32 mm Ø (heat resistant, floor level)

STEAM

Produced by the integrated steam generator, no external connection required

COMPRESSED AIR

Air compressor included

TOTAL CYCLE TIME

Approx. 40 to 50 min depending on steam generator version and load humidity

LOADING CAPACITY (KG/CYCLE)

15 to 25 kg/cycle (Based on an average waste density of 0,12 to 0,2 kg/l)

TOTAL CYCLE TIME IN WORKING CONDITIONS (2)

40 to 45 min

TREATMENT CAPACITY (KG/H) (3)

20 to 35 kg/h (Based on an average waste density of 0,12 to 0,2 kg/l)

EXTERNAL DIMENSIONS (HxWxD)

1890 mm (2185 incl. poussoir) x 1860 mm x 980 mm

NET WEIGHT

1 750 kg

LOADING CHAMBER

Stainless steel

TREATMENT CHAMBER

316L Stainless steel

STEAM GENERATOR

Stainless steel

WATER SOFTENER

Available as option

WATER BOOSTER PUMP

Available as option

WASTE SHREDDER

AISI 304L stainless steel (structure) Hardox® hard steel (blades)

PIPING

Stainless steel/PTFE flexible hosing

CHASSIS

Powder coated steel

BODYWORK

Stainless steel

CYCLE TRACEABILITY

Built-in printer

































































(2) Cycle times may vary based on the type of materials, waste density, humidity, quantity of liquids, etc.
For loads with high liquid content, cycle time can be longer. Up to 50min depending on the waste density.
3) Based on an average cycle time of 45min. (40 min. of cycle + 5 min. unloading/loading time).
All the data given in this catalogue are non-binding and given as a guide only. Treatment capacities, cycle times and consumptions are given as mere examples and may vary depending on the type of waste, installation conditions, operator’s availability and skills.
Consumption is calculated on the basis of a standard cycle of the machine.
For consumption with cooling of the drain and / or the Virus + kit, please consult us.

AGUA
RequisitosAgua 4-8°TH
Consumo40 litros / ciclo (máquina 15L + generador de vapor 25L)
ELECTRICIDAD
Requisitos380-400 V III N, 50 Hz (otro voltaje / frecuencia disponible como opción)
Consumo (Generador de vapor de 30 kW)40 kW / consumo medio 18 kWh
