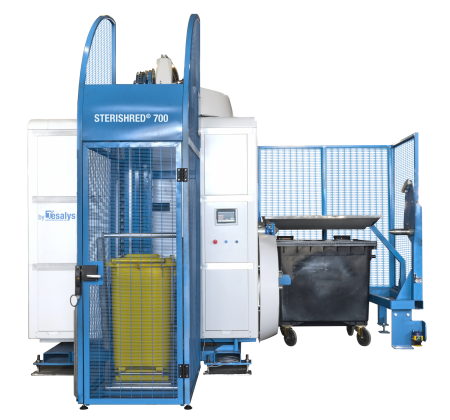

STERISHRED® 700

TRITURADORA INTEGRADA - ESTERILIZADOR PARA RESIDUOS SANITARIOS

STERISHRED® 700 es una solución avanzada para realizar un tratamiento seguro de desechos biomédicos que reduce el riesgo, el volumen / peso y los costos del dispositivo. es una solución avanzada para realizar un tratamiento de residuos biomédicos seguro que reduce riesgos, volumen / peso y costos de eliminación. Trata los residuos sanitarios infecciosos mediante una trituración previa seguida de un proceso térmico sin combustión (esterilización por vapor) a 135 ° C, ¡en pocos minutos! Compacto pero con una gran capacidad de procesamiento (hasta 100 kg / h), se puede utilizar para el procesamiento in situ o en instalaciones de subcontratación centralizada.

Muy alta capacidad

La STERISHRED® 700 ofrece una capacidad de tratamiento in situ de 40 a 100 kg/hora.

Totalmente automatizado

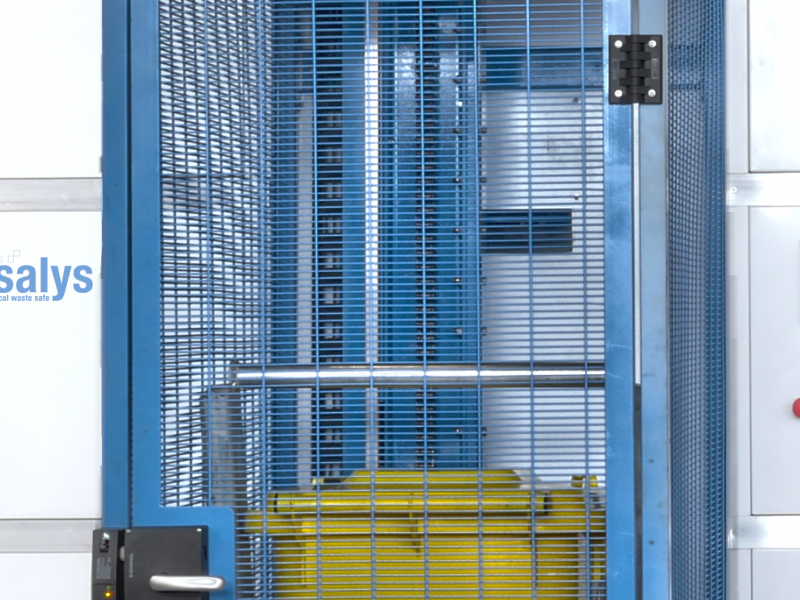

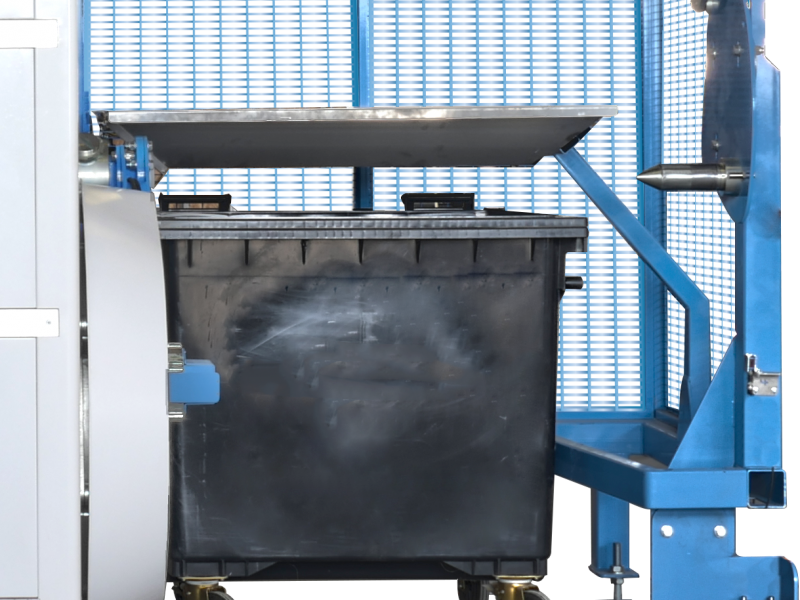

Su sistema de carga y descarga está totalmente automatizado.

Para grandes estructuras

Es la solución ideal para las estructuras que producen grandes cantidades de residuos infeccioso y desean reducir su impacto medioambiental al tratarlos in situ.



DRAIN

2” Ø (heat resistant, floor level)

STEAM

Produced by the integrated steam generator, no external connection required

COMPRESSED AIR

Built-in, no external connection required

TOTAL CYCLE TIME

Approx. 35 to 50 min depending on steam generator version and load humidity

LOADING CAPACITY (KG/CYCLE)

40 to 100 kg/cycle (Based on an average waste density of 0,08 to 0,12 kg/l)

TOTAL CYCLE TIME IN WORKING CONDITIONS (2)

50 to 60 min

TREATMENT CAPACITY (KG/H) (3)

40 to 100 kg/h (Based on an average waste density of 0,08 to 0,2 kg/l)

LOADING CHAMBER

Stainless steel

TREATMENT CHAMBER

316L Stainless steel

STEAM GENERATOR

Stainless steel

WATER SOFTENER

Available as option

WATER BOOSTER PUMP

Available as option

WASTE SHREDDER

AISI 304L stainless steel (structure) Hardox® hard steel (blades)

PIPING

Stainless steel/PTFE flexible hosing

CHASSIS

Powder coated steel

BODYWORK

Stainless steel

CYCLE TRACEABILITY

Built-in printer

EXTERNAL DIMENSIONS

4000 mm x 4045 mm x 3890 mm - As an option, unit can be disassembled in three parts



































































(2) Cycle times may vary based on the type of materials, waste density, humidity, quantity of liquids, etc.
For loads with high liquid content, cycle time can be longer. Up to 50min depending on the waste density.
3) Based on an average cycle time of 45min. (40 min. of cycle + 5 min. unloading/loading time).
All the data given in this catalogue are non-binding and given as a guide only. Treatment capacities, cycle times and consumptions are given as mere examples and may vary depending on the type of waste, installation conditions, operator’s availability and skills.
Consumption is calculated on the basis of a standard cycle of the machine.
For consumption with cooling of the drain and / or the Virus + kit, please consult us.

WATER
NeedsWater 4-8°TH
ConsumptionApprox. 100 liters/cycle (20L machine + 80L steam generator)
ELECTRICITY
Needs380-400 V III N, 50 Hz, 80kW (other voltage / frequency available as option)
Consumption

25 kWh / cycle
